Application Analysis of SMA905 Fiber Optic Connector Free Ends in Medical Instruments

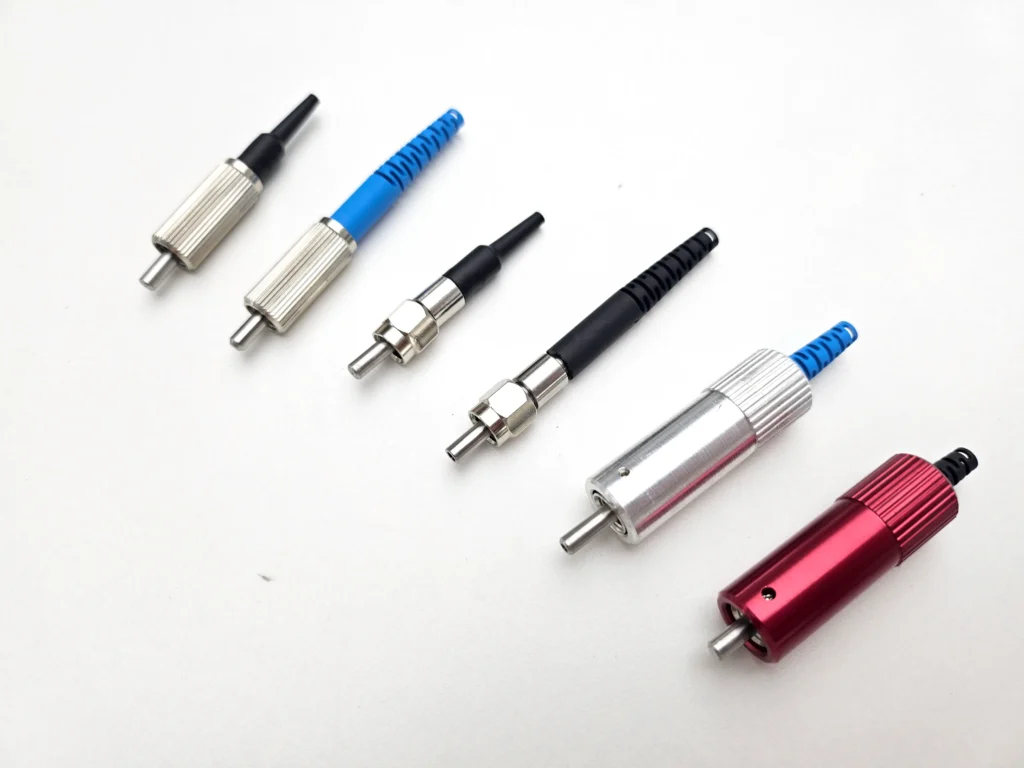

I. Basic Characteristics of SMA905 Fiber Optic Connector Free Ends
SMA905 is a common type of fiber optic connector with core features including:
- Interface Structure: Threaded connection (SMA stands for “SubMiniature version A”) paired with 905μm inner diameter multimode fiber, suitable for low to medium power optical systems.
- Free End Design: One end features a freely suspended fiber endface (without a fixed adapter), enabling flexible plugging/unplugging and dynamic adjustment of the optical path direction, ideal for scenarios requiring flexible optical alignment.
- Performance Advantages: Low insertion loss (typically <0.3dB), high return loss (>50dB), strong vibration and interference resistance, meeting the precision requirements of medical environments.
II. Typical Application Scenarios in Medical Instruments
(1) Laser Medical Equipment
- Laser Surgery and Treatment
- Application Scenarios: Laser scalpels, dermatological laser therapy devices (e.g., hair removal, skin pigmentation treatment), ophthalmic laser surgery (e.g., retinal photocoagulation).
- Mechanism: The SMA905 free end flexibly connects the laser light source to the handheld treatment probe. Threaded fixation ensures stable transmission of high-power lasers (e.g., 1064nm Nd:YAG laser, 810nm semiconductor laser), while allowing surgeons to adjust the probe angle during operations for precise targeting of lesions.
- Key Advantages: High-temperature resistant materials (e.g., ceramic ferrules) withstand heat from laser transmission, and the free end design eliminates restrictions on surgical operations caused by fixed interfaces.
- Laser Physiotherapy Equipment
- Application Scenarios: Low-level laser therapy (LLLT) devices, pain relief instruments.
- Features: The free end can directly contact the skin or insert into specific treatment attachments for local phototherapy. Threaded connections ensure long-term use without loosening, suitable for repeated operations in home or clinical settings.
(2) Endoscopes and Minimally Invasive Surgical Instruments
- Optical Imaging Systems
- Application Scenarios: Illumination and image transmission for endoscopes such as laparoscopes, cystoscopes, and gastroscopes.
- Technical Details: The SMA905 free end connects to a cold light source (e.g., LED or halogen lamp) to guide light into the endoscope probe, while also compatible with image fiber bundles for high-brightness, low-loss illumination. The flexibility of the free end allows endoscopes to adjust angles in complex body cavities, avoiding operational limitations from fixed interfaces.
- Minimally Invasive Surgical Auxiliary Tools
- Application Scenarios: Laser lithotripsy devices, photodynamic therapy (PDT) catheters.
- Case Example: In ureteral stone lithotripsy, the SMA905 free end connects to a laser fiber, which is inserted into the body through a ureteroscope to directly fragment stones. The free end design adapts to the curved path of the ureter, improving surgical precision.
(3) Biomedical Detection and Spectral Analysis
- Spectral Diagnostic Equipment
- Application Scenarios: Blood component analyzers, tissue spectral detectors (e.g., early cancer screening).
- Principle: The SMA905 free end connects a spectrometer to a sampling probe, transmitting reflection/fluorescence spectra of biological tissues via optical fibers. The free end can directly contact tissue surfaces or insert into the body through catheters for non-invasive or minimally invasive detection. For example, in breast cancer screening, a near-infrared spectroscopy (NIRS) probe with an SMA905 connector rapidly acquires tissue oxygen saturation information.
- Real-time Monitoring Systems
- Application Scenarios: Intraoperative optical coherence tomography (OCT), fluorescence microscopy.
- Advantages: The free end can be integrated into surgical microscopes or probes to transmit high-resolution images in real-time, assisting surgeons in judging tissue boundaries (e.g., during tumor resection), and the stability of threaded connections ensures no signal interruption during dynamic imaging.
(4) Medical Fiber Sensing and Vital Sign Monitoring
- Physiological Parameter Sensors
- Application Scenarios: Fiber optic blood pressure sensors, heart rate monitors.
- Design Features: The SMA905 free end connects to a sensing fiber, real-time monitoring of physiological parameters through optical signal modulation (e.g., polarization, wavelength changes). For example, attaching the free end probe to the skin surface monitors pulse through changes in reflected light intensity, and the adjustability of the free end adapts to measurement needs of different body parts.
- Environmental Monitoring Equipment
- Application Scenarios: Internal optical path monitoring of medical devices (e.g., power calibration of laser therapy devices).
- Function: The free end can be temporarily connected to the device’s optical path for calibration or fault detection, eliminating the need for fixed installation and improving equipment maintenance convenience.
III. Special Design Requirements for Medical Applications
- Biocompatibility and Disinfection Resistance
- Connector materials must comply with ISO 10993 standards, typically using medical-grade plastics (e.g., PEEK) or stainless steel. Surfaces can withstand disinfection with alcohol or hydrogen peroxide, and some products are suitable for high-temperature 高压 sterilization (e.g., steam sterilization).
- Dust and Contamination Prevention Design
- Free ends must be equipped with dust caps when idle to prevent contamination of the fiber endface (e.g., dust, body fluids), avoiding increased insertion loss. Some high-end products feature self-cleaning coatings to reduce residue adhesion after disinfection.
- Miniaturization and Operational Convenience
- Medical devices trend toward miniaturization, and the compact structure of SMA905 free ends (diameter ~5mm) adapts to minimally invasive surgical instruments. Threaded connections support one-handed quick plugging/unplugging, meeting the efficient operation requirements of operating rooms.
IV. Comparative Advantages over Other Fiber Optic Connectors
| Comparison Dimension | SMA905 Free End | FC/PC Connector | SC Connector |
|---|---|---|---|
| Connection Method | Threaded, suitable for dynamic adjustment | Bayonet, mainly for fixed scenarios | Push-pull, suitable for multi-user scenarios |
| Flexibility | Free end allows free bending and angle adjustment | Fixed interface, low flexibility | Convenient plugging/unplugging, but angle adjustment is limited |
| Medical Adaptability | Vibration-resistant, high-temperature tolerant, suitable for surgical environments | High stability, but larger volume | Lightweight, but weaker anti-interference capability |
| Typical Applications | Laser surgery, endoscopy | Laboratory spectral equipment | Medical image transmission |
V. Future Development Trends
- Integration with Fiber Lasers: With the popularization of high-power fiber lasers in medicine, SMA905 free ends may upgrade to higher power tolerance (e.g., >100W) to meet deep tissue treatment needs.
- Multi-channel and Intelligent Design: Develop multi-core SMA905 connectors to simultaneously transmit laser, image, and sensing signals, adapting to integrated medical devices (e.g., “laser knife + imaging” integrated probes).
- Exploration of Biodegradable Materials: For disposable minimally invasive instruments, research biodegradable alternatives to SMA905 connectors to reduce medical waste pollution.
Conclusion
The SMA905 fiber optic connector free end plays a key role in laser therapy, endoscopic imaging, spectral diagnosis, and other fields due to its structural flexibility, connection stability, and medical adaptability. Its design not only ensures efficient optical signal transmission but also meets the rigorous requirements of medical environments through biocompatibility, disinfection resistance, and other features. In the future, it will further expand application scenarios along with the development of minimally invasive technology and precision medicine.
